♻SOECOPO Complete Solar System Kit – Fuel Your Off-Grid Life with Steady, Eco-Friendly Energy

Choose AC 110V or AC 220V Output

- Select the AC 110V version for compatible 110V appliances.

- Select the AC 220V version for compatible 220V appliances.

- Check your local appliance voltage before ordering.

What's in the set❓

✅Solar Panel ×2
✅SOECOPO Charge Controller ×1
✅ Inverter ×1
✅Accessories:
（1）Controller Alligator Clips ×1
（2）Inverter Alligator Clips ×1
（3）DC Cables ×2
（4）Carabiners ×2
（5）Suction Cups ×4
（6）Car Inverter Cable ×1
（7）User Manual ×1
（8）DC 1-to-3 connection cable (used for connecting two boards)

⚠️ Batteries not included (user-provided).

What are the parameters of each component ❓

🔆 Solar panels

☀ Specification parameters: Maximum power of 10W-200W, size of 435mm/17.1inch × 200mm/7.87inch, weight of 250g/8.81oz.
☀ Material: Made of aluminum substrate, high-efficiency chip, and PET material.
☀ Interface: Equipped with DC interface and dual USB interface, DC output 18V, USB output 5V.
☀ Accessories: Includes crocodile clip (for controller), 2 climbing buckles, 4 suction cups, 2 DC cables, crocodile clip (for inverter, suitable for 12V/24V).

🔐Intelligent Controller

✅ Digital monitoring: Real time display of voltage/current, clear and easy to understand power consumption status

✅ Automatic adaptation: Intelligent recognition of 12V/24V batteries, no manual switching required

✅ Triple protection: overcharge/overdischarge/overvoltage protection, safeguarding equipment safety

🔄 power inverter:

🔋 Rated power: 1100W
🔌 DC input: 12V/24V/48V
🔌 AC output: 220V 50Hz / 110V 60Hz
🛡️ Protection functions: over temperature, over voltage, under voltage, overload, short circuit protection
📊 Additional features: Smart Fan
🔌 Interface: 5V 1.5A USB / Universal Socket
⚙️ Wiring: Alligator clip / Cable
⚖️ Weight: 1250g / 44.0oz
📐 Product size: 220mm/8.66inch * 105mm/4.13inch * 55mm/2.16inch

How to connect the system ❓

📌Three step system connection method

Step 1: Connect the solar controller to the battery, ensuring the controller recognizes the battery voltage.

Step 2: Connect the solar controller to the solar panels via DC cable to prepare for solar energy collection.

Step 3: Connect the solar inverter to the battery using battery clips to complete electrical energy conversion and prepare for AC output.

⚠️ Attention: Be careful to distinguish between positive and negative poles when connecting all components.

Mode 1: Solar panel direct charging mobile phone 📱

✅ Minimalist operation: solar panel → dual USB ports, no need for additional equipment, sun exposure while ""extending the life"" of the phone.

✅ Scenario adaptation: When hiking, resting, camping, or cycling, it is necessary to recharge the battery at any time, and the navigation and communication lines are constantly connected. It is a must-have for travel bloggers/backpackers.

Mode 2: Solar panel+controller → Light up the light source 💡

✅ Two step implementation: solar panel connected to controller, then connected to light bulb/lighting equipment, light energy → electrical energy → light energy conversion, simple and direct.

✅ Practical scenarios: Camping night chat atmosphere lights, emergency lighting for mountain hiking, using solar energy to light up exclusive lights, safe and romantic.

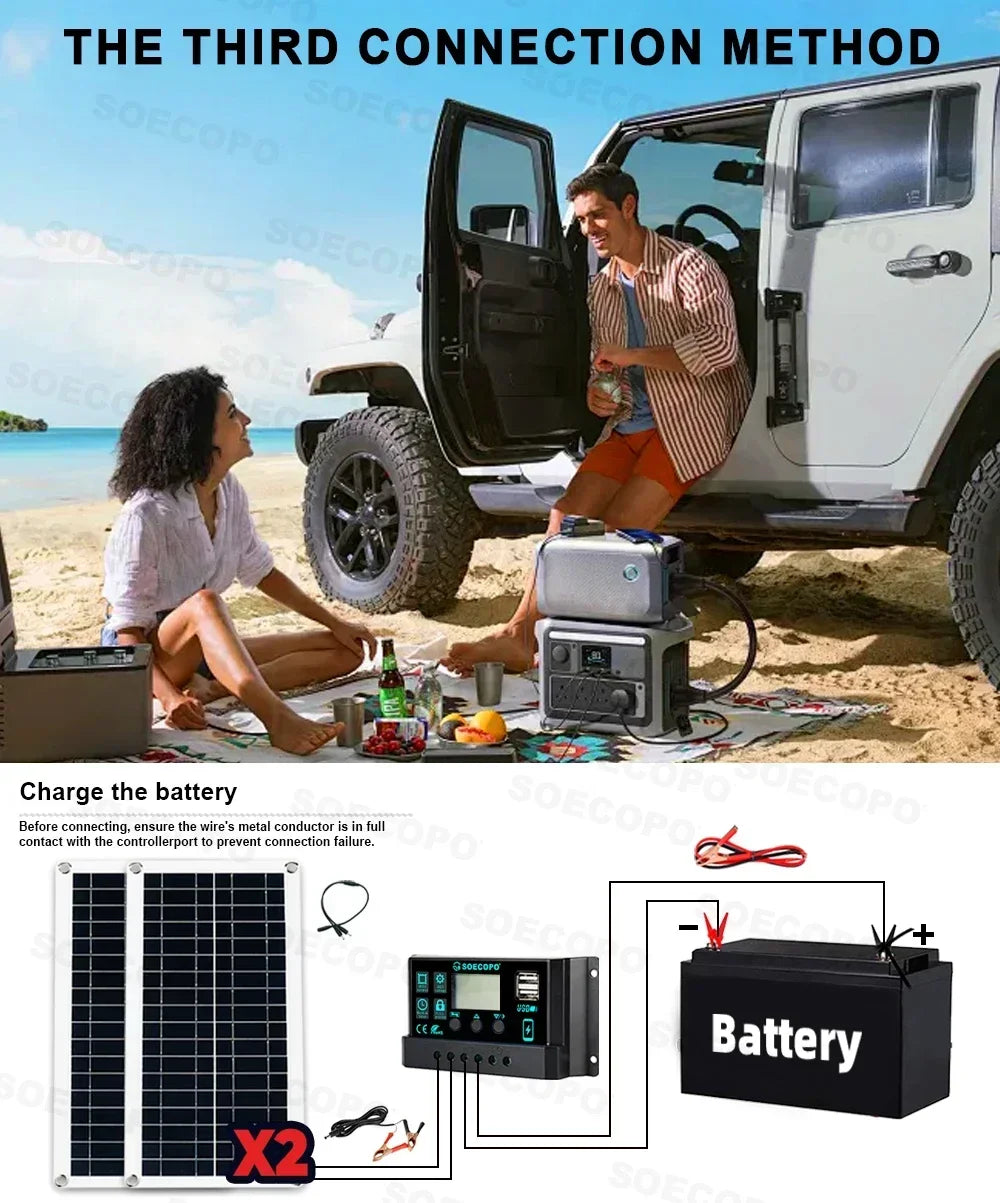

Mode 3: Solar panel+controller → Charge battery 🔋

✅ Energy storage logic: During the day, solar panels generate electricity, which is stably output by the controller to store electricity in the battery and store "sunlight".

✅ Advantages: Suitable for 12V/24V batteries, storing ""energy packs"" for subsequent high-power consumption, and providing power even on cloudy days and at night.

Mode 4: Battery+Inverter → Drive Electrical Appliance 🔌

✅ Conversion key: The DC power stored in the battery is converted into 110V/220V AC power by the inverter, which can power high-power appliances like electric drills, grills, and refrigerators.

✅ Experience upgrade: Bring the convenience of home appliances outdoors, supporting both professional tools and daily living equipment, perfectly matching camping, off-grid living, and emergency power needs.

⚠️ Pre-check tip: Before connecting, ensure the wire's metal conductor is in full contact with the inverter port to avoid connection failure.

Mode 5: Solar panel+controller+battery+inverter → complete linkage ⚡

✅ Closed loop logic: Light energy collection (solar panels) → storage (batteries) → conversion (inverters) → electricity consumption (appliances), building a complete power supply ecosystem.

✅ Scenario breakthrough: Complex electricity needs such as televisions and rice cookers are also met, making camping a ""mobile home"" in seconds. It is the first choice for long-term outdoor camping and team camping.

⚠ Important Power Information The 10000W peak power refers to short-term startup power support.
The continuous working power is 1000W.

！！Please check your device's rated power and startup power before use to ensure compatibility！！

⚠️ Note:

❗Avoid multi-device use!
❗Car fridge must have ≤1000W startup power.
❗This inverter is suitable for devices within the rated power range.
❗For high-power appliances such as microwave ovens, air conditioners and heating devices, please confirm their startup power before use.
❗Not recommended for medical equipment or life-support equipment.

⚠️Additional User Tips

🌞 Use a battery with sufficient capacity for stable operation.

🌞 Avoid using multiple high-power devices at the same time.

🌞 Stop using immediately if abnormal smell, smoke or unusual noise appears.

🌞 Keep cables tightly connected to avoid poor contact.

🔋Choose the right battery

Choosing the right battery is very important for your inverter to work safely and stably.

🟩Before Using Your Solar System - Important Q&A

Q1:Does the 10000W inverter provide continuous 10000W output?
💡A:No.10000W is the peak surge power for short startup needs.
The actual continuous output power depends on the inverter rated power.
Please check the rated power before connecting devices.

Q2:Why does my appliance not start?
💡A:Some appliances require higher startup power than normal working power.
Please check the startup power requirement before connection

Q3:Can the solar panel work continuously?
💡A:Solar panels only generate power when sunlight is available.
Charging performance depends on sunlight intensity, weather and installation angle.

Q4:Is the battery included?
💡A:No.This kit includes the solar panels, controller, inverter and accessories shown in the product description.

Q5:What battery is suitable?
💡A:Please use a battery that matches the inverter voltage.
Choose suitable battery capacity according to your usage needs.

Q6:Why does the inverter stop working?
💡A:Possible reasons:Overload
Low battery voltage
Overheating
Short circuit
Reduce load and check the system connections.

Q7:Why does the system generate heat?
💡A:Heat during power conversion is normal.
Keep enough ventilation space and avoid covering the equipment.

Why choose a solar energy system ❓

🔋 Daily power supply: It can meet the needs of household lighting, various household appliances, as well as provide power for outdoor camping, outdoor work lighting, and electronic devices.

⚡ Emergency support: Energy can be stored in batteries to provide emergency power for critical facilities such as communication in case of power outages or unstable electricity.

🌱 Promote environmental protection: reduce dependence on fossil fuels, lower carbon emissions, help achieve carbon neutrality, and promote energy structure transformation.

🏞️ Remote area power supply: Provide stable electricity to remote areas that are difficult to cover by the power grid, and improve local electricity conditions.

💰 Reduce electricity costs: Long term use can reduce electricity expenses, especially in areas with sufficient sunlight, with significant effects.
