SPECIFICATIONS

Brand Name: Aninerel

Certification: CE,RoHS

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Is Smart Device: Yes

Model Number: ANL-4200T-24L-W-PRO/ANL-6200T-48L-W-PRO

Origin: Mainland China

Output Current: 60A/120A/160A

Output Frequency: 50/60 Hz

Outputs Type of 11000W: Dual Outputs

Outputs Type of 2000W: Single Output

Outputs Type of 4200W: Dual Outputs

Outputs Type of 6200W: Dual Outputs

Size: 637*495*214mm

Type: On-Grid+Off-Grid Hybrid Inverter

Weight: 14.8kg

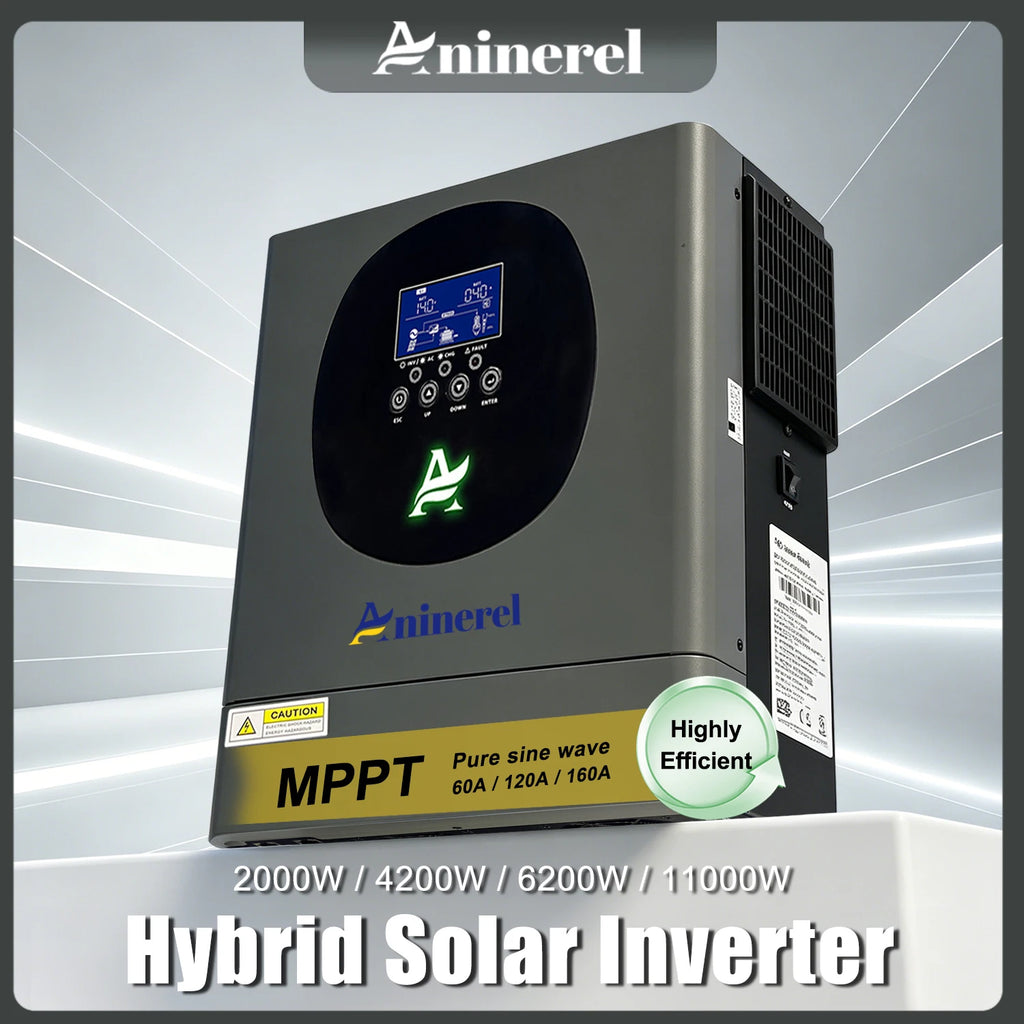

Aninerel Hybrid Solar Inverter MPPT 2KW 4.2KW 6.2KW 11KW 12V 24V 48V LCD Display Pure Sine Wave 220V Home PV Inverter With WIFI

Notice!!!

There are four models available via this link, each with different specifications. To ensure you do not purchase the wrong model, please check the details carefully before placing your order, or feel free to contact our customer service team for further assistance. Thank you very much for your understanding.

Product features:

[Versatile hybrid mode]: An all-in-one hybrid inverter that supports both off-grid and grid-connected operation, with the ability to feed surplus energy back into the grid. A range of power ratings and voltages makes it suitable for homes, commercial premises and solar systems.

[High MPPT efficiency and pure sine wave]: The built-in MPPT controller ensures fast and efficient charging. The pure sine wave output guarantees safe operation of sensitive domestic and commercial appliances.

[Advanced features of high-power models]: The 4.2 kW, 6.2 kW and 11 kW models feature dual output. Battery-free operation, lithium battery activation and 4 operating modes are available for flexible power management.

[Remote monitoring via Wi-Fi] : The built-in Wi-Fi module allows you to monitor the inverter’s operation online via a smartphone. Simple smart setup and convenient everyday use.

[Stability in an unstable grid] : The inverter is well-suited to weak and unstable power grids. Multi-level protection and a robust design ensure long-term, stable operation.

More function:

●Dual output for smart load management (No include 2000W Version)

●Built-in 2 MPPT (11000W Version Only)

●Colored LCD with RGB lights (No include 2000W Version)

●Lithium battery activation function by PV or Utility

●Compatible work with LiFePO4 battery via RS485

●Pure Sine Wave

●Power factor 1.0

●PV Input 500Vdc Max (No include 2000W Version, 2000W PV Input 30-160Vdc)

●Built-in MPPT 60A(2000W), 120A (4200W / 6200W) , 160A (11000W)

●Capable to work without battery (No include 2000W Version)

●WIFI remote monitoring optional

●Detachable dust cover for harsh environment

●Support multiple output priority: SUB,SBU,SUF

●EQ function to optimize battery performance and extend lifecycle

OFF GRID

Hybrid Solar InverterSIX MAJOR ADVANTAGES

RGB Lights / Dual Outputs(no include 2KW Version) / PV60-500Vdc

60A/120A/160A MPPT / Lithium Battery Activation(no include 2KW Version) / for harsh environmentPV Connection

When selecting proper PV modules, please be sure to consider below parameters:

1.Open circuit Voltage (Voc) of PV modules not exceeds max. PV array open circuit voltage ofinverter

2.Open circuit Voltage (Voc) of PV modules should be higher than min. battery voltage.

Feed into the grid

If solar energy is suffcient to all connected loads and charge battery, the solar energycould feedback to the grid. If solar energy is not suffcient to power all connectedloads,utility energy will supply power to the loads at the same time.Monitor and control via smartes App

You can check the status of your device using wifiApplication field

It has a wide range of applications, is energy-saving and has no restrictions on electricity usage

Solar power system / Rv power generation / Base station

Commercial office / Household appliances / Outdoor work
